مشخصات فنی روتر میکروتیک CCR1009-8G-1S-1S Plus PC

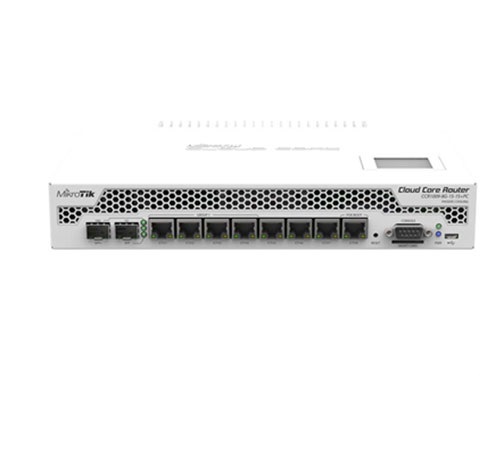

Cloud Core Router Mikrotik CCR1009-8G-1S-1SPlus-PC

Our popular 9-core Cloud Core Router is now available in a new passive cooling enclosure. This CCR1009 unit is equipped with two heat-pipes and a specially designed heat-sink, so its completely silent.The unit is powered by an external 24v 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.The device comes with a desktop enclosure, but special rackmount brackets are also included, so it can be used either on desk or in rack.

مشخصات فنی روتر میکروتیک CCR1009-8G-1S-1SPlus-PC

• Product code: Mikrotik Cloud Core Router CCR1009-8G-1S-1S+PC
• Dimensions: 272x190x47mm
• CPU nominal frequency: 1 GHz
• CPU core count: 9
• Size of RAM: 2 GB
• Architecture: TILE
• ۱۰/۱۰۰/۱۰۰۰ Ethernet ports: 8
• Number of USB ports: 1
• Power Jack: 1
• Supported input voltage: 14 V – 57 V
• PoE in: Yes
• Voltage Monitor: Yes
• CPU temperature monitor: Yes
• PCB temperature monitor: Yes
• Operating System: RouterOS
• Tested ambient temperature: -20C .. +60C
• License level: 6
• Current Monitor: Yes
• CPU: TLR4-00980CG-10CE-A3a
• Max Power consumption: 30W
• SFP ports    : ۱
• SFP+ ports: 1
• USB slot type: microUSB type AB
• Serial port: RS232
• Storage type: NAND
• Storage size: 218 MB
