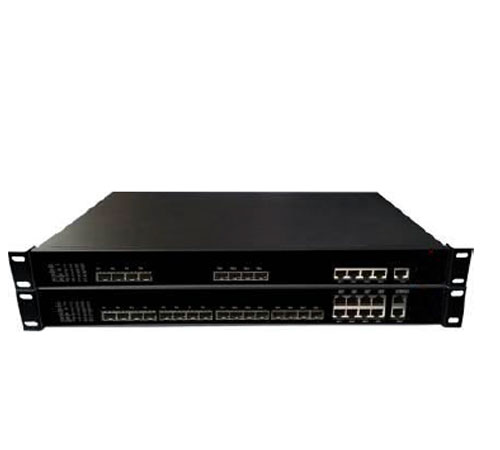

سیستم مرکزی تاینت OLT 8610

تماس بگیرید

مشخصات فنی سیستم مرکزی تاینت OLT 8610

GEPON Passive Line Terminal Tainet OLT 8610

سیستم OLT از نوع GEPON  با ۸ پورت اترنت و ۸ پورت PON و این دستگاه جزیی از لاین ترمینال می باشد. و دارای ویژگی های زیر می باشد:

– Compact 1U OLT supports up to 8 GE PON ports & power redundant
–  Full compliance with IEEE 802.3ah specification & OAM function
– Advanced traffics management for Classification, Policing, Marking, Scheduling, Shaping, and Buffer Management
–  Hardware and/or software based Dynamic Bandwidth Allocation (DBA)
–  Advanced L2 features & Quality of Service (QoS) support
–  IGMP multicast snooping (v1 & v2)
– Support Console/ Telnet/ NMS management interface for ease of operation and maintenance
–  Maximum Frame size up to 9K bytes
–  Support Flow Control, Auto-Cross over for MDI/MDIX on TP port

مشخصات فنی سیستم مرکزی تاینت OLT 8610

Brand: Tainet
Dimension:
– ۴PON: 260(W) x 440(D) x 44(H) mm
– ۸PON: 315(W) x 442(D) x 44(H) mm
OLT 8610 – Optical Line Terminal:
– OLT 8610/4P: 4 PON, 4*Gigabit Ethernet+ 4*Optical Ethernet
– OLT 8610/8P: 8 PON, 8*Gigabit Ethernet+ 8*Optical Ethernet
System Feature:
– Architecture:
SFP slot design for different requirements
Redundant power modules
– PON port:
Maximum reach up to 20Km
Tx: 1490nm, Rx:1310nm
Max. 4 ports or 8 ports per OLT box
– Uplink port:
۱۰۰۰Base-T Ethernet, RJ-45 interfaces
۱۰۰۰Base-Fx Ethernet, SFP module slots
Max. 4 ports or 8 ports per OLT box
– Capacity:
Max. 64 ONUs per PON port
Whole system support 256 to 512 ONUs
– Management Port:
۱ x 10/100Base-T out-band port
۱ x RJ-45 Console port (RS-232C)
– Power Module:
AC+DC or DC+DC for redundancy
AC: 90~264VAC, 47~63Hz
DC: -36~ -72V
System Management & Maintenance:
– Full complies with IEEE 802.3ah OAM standard
– CLI, TELNET, EMS management
– SNMP support
– Support online upgrading and ONU batch upgrade
– System and port statistic
– Alarm management
Ethernet Layer2 Function:
– IEEE 802.1Q tag-based VLAN (4096 entries)
– Port-based VLAN and protocol-based VLAN
– ۱۶K MAC address table
– IGMP Snooping
– IEEE 802.3x flow control
– Rapid Spanning Tree Protocol (RSTP)
Traffic & QoS Management:
– IEEE 802.1P priority queue
– Dynamic Bandwidth Allocation (DBA)
– Port-based rate limitation
